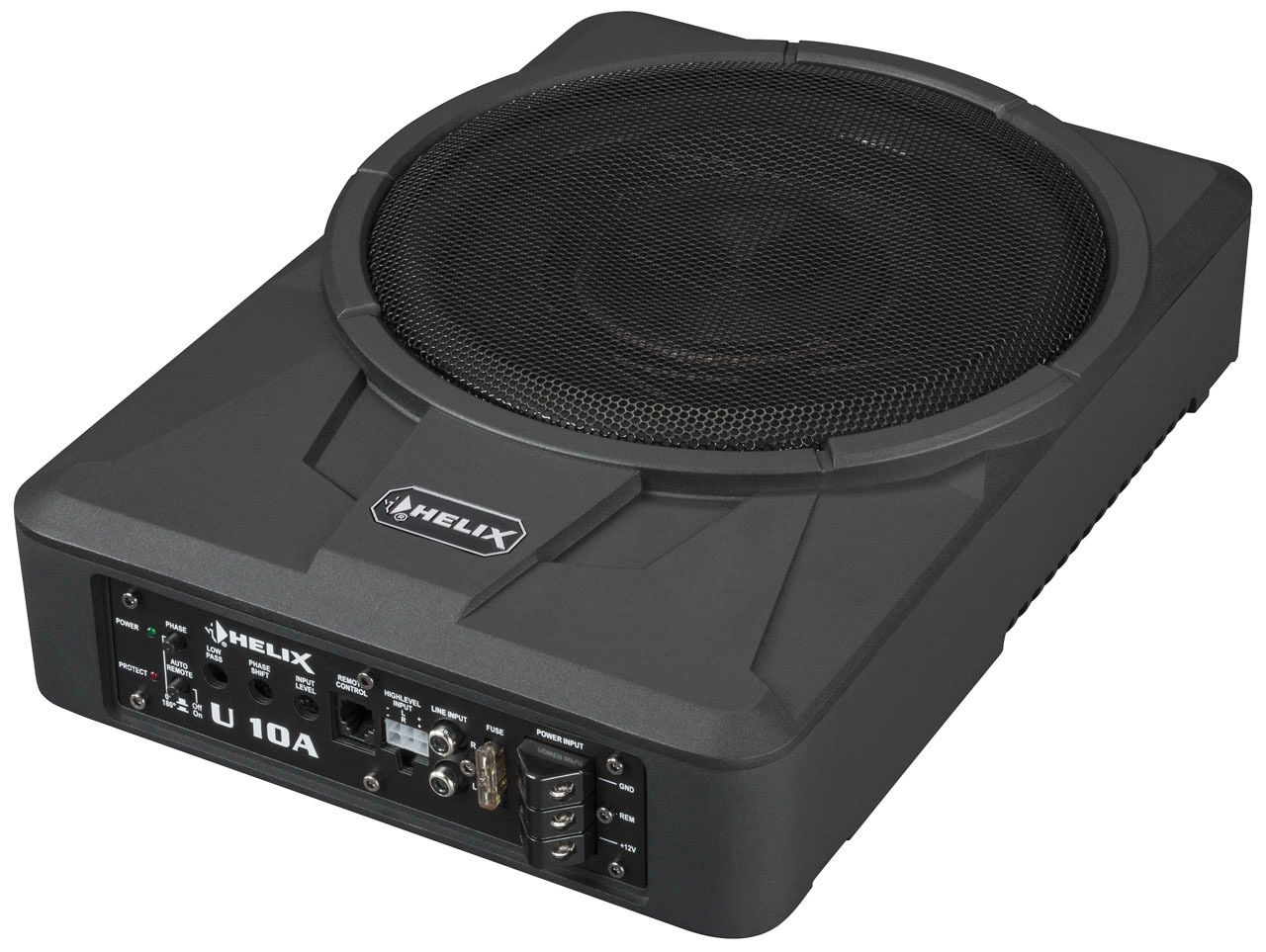

Bass is in the smallest hut –If mounting space in the vehicle is scarce and existing car hifi systems badly need the "extra kick" in the low frequency range without great effort, the new HELIX active subwoofers U 10A and U 8A are the right choice. Driven by powerful, integrated Class AB amplifiers with 180 W RMS, the heavy-duty drivers with their rock-solid aluminum cones and heat-resistant voice coils easily transform the amplifier power into punchy bass. Thanks to comprehensive setting options like the adjustable, high-slope lowpass filter and particularly sensitive phase control, the low frequency reproduction can be perfectly adapted to the acoustic conditions inside the vehicle. Equipped with a 2-channel highlevel input with automatic turn on function as well as a 2-channel lowlevel RCA input a seamless integration is guaranteed. And thanks to the especially shallow cabinet design the installation will be a no-brainer, especially if space is extremely limited – these small  "bass boosters" may even fit under the seats, for example.

Features:

Powerful, integrated Class AB amplifier with 180 W RMS power for punchy bass

Solid and low-resonance diecast aluminium housing for precise bass reproduction and optimum heat dissipation

Heavy-duty 10” / 250 mm chassis with extremely stable aluminum cone for compression-free transformation of the amplifier power into sound pressure

2-channel highlevel input with Auto Turn-on function as well as 2-channel lowlevel input

Continuously adjustable, steep-flanked lowpass filter

Particularly sensitive adjustment of the phase

Cable remote control for volume adjustment included in delivery

Especially flat housing design - ideal for space-saving under-seat mounting

Specifications

Power RMS / max. 180 / 360 Watts

Woofer diameter 10" / 250 mm

Inputs 2 x RCA / Cinch

2 x Highlevel speaker input

1 x Remote In

1 x Remote control input

Input sensitivity Highlevel 1.2 - 20 Volts

RCA / Cinch 0.3 - 4 Volts

Input impedance RCA / Cinch 10 kOhms

Input impedance highlevel 33 Ohms

Frequency response 40 - 150 Hz

Lowpass 50 - 150 Hz adjustable

Subsonic 16 Hz / 12dB/Oct.

Phase switch 0° / 180° switchable

Phase shift 0 - 180° adjustable

Slope lowpass 24 dB/Oct.

Signal-to-noise ratio > 92 dB (A-weighted)

Distortion (THD) < 0.4 %

Operating voltage 10.5 - 16 Volts

Fuse 25 A Maxi-fuse (APX)

Additional features Diecast aluminum housing, cable remote control for volume adjustment, Auto Remote switch

Dimensions (H x W x D) 78 x 245 x 345 mm /

3.07 x 9.65 x 13.58"
